The Geometric Heart of Complex Systems: From Manifolds and Group Theory to Lie Groups

Introduction: The Physicist’s Geometric Anxiety and a New Language

In the grand narrative of modern physics, researchers in complex systems and non-equilibrium physics face a quiet crisis. We are used to a linear worldview: forces add as vectors, waves interfere in amplitude, and the state of a system is a vector in flat Euclidean space. Yet when we try to describe turbulence, non-equilibrium thermodynamics, protein folding, or large-scale neural synchronization, this flat geometric intuition fails. The “space” of many complex systems is not flat—it curves, folds, and wraps; the “rules” governing their evolution are not simple addition and subtraction but involve symmetry transformations at a deep level.

To handle this complexity far from equilibrium, physicists borrow three keys from mathematics: groups, manifolds, and Lie groups. These concepts are not isolated; together they form a language for “invariance under change.” Understanding this language is essential for non-equilibrium thermodynamics (e.g. Souriau’s geometric thermodynamics) and the deep structure of plasticity.

The state space of a complex system is often not flat Euclidean space but a curved manifold. Manifolds capture the “shape” of that space. Symmetry is at the core of physical law, and group theory is the language of symmetry—it tells us “which transformations are allowed.” Lie groups combine the smoothness of a manifold with the algebraic structure of a group and link geometry to dynamics. Lie algebras “linearize” this structure and make computation tractable.

To describe the dynamics of a complex system, we must first know what its state space looks like (manifolds), then what symmetry rules it obeys (groups), and finally combine the two for continuous evolution (Lie groups).

1. Manifolds: The Shape of Complex-System State Space

Before discussing symmetry and dynamics, we must answer: in what kind of space do the states “live”? For a simple harmonic oscillator it is a line; for projectile motion, a plane. For a double pendulum, a protein, or a neural network, the state space can be curved and self-wrapping—a manifold. Understanding manifolds is the first step toward the geometry of complex systems.

In classical mechanics we draw positions and momenta on a flat Cartesian plane. For constrained complex systems, the state space often has non-trivial topology.

1.1 The Ant’s Illusion and Local Euclideanity

The notion of a manifold goes back to Bernhard Riemann and his 1854 lecture on “Mannigfaltigkeit” (multiplicity). For an ant on the surface of the Earth, the world looks flat.

Local flatness: A manifold is a topological space that in a small neighbourhood of any point “looks like” Euclidean space. Zoom in at any point and you can describe the neighbourhood with a flat coordinate system ((\mathbb{R}^n)).
Global complexity: Locally it is flat, but globally it can be complicated. The sphere (S^2) is locally like the plane but globally closed; the torus (T^2) is locally like the plane but has a hole.

This “locally simple, globally complex” character makes manifolds ideal for the state spaces of complex systems. We may not know the global topology, but we can always write local differential equations (evolution laws). Manifold theory ensures these local laws can be “stitched” into a global description.

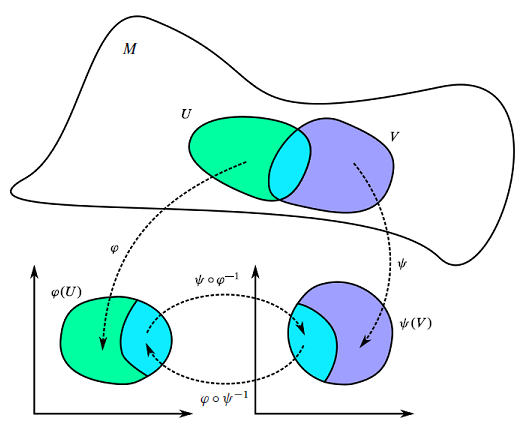

1.2 Stitching the World: Charts and Atlases

To make “looks like flat” precise, we use charts and atlases (as in map-making).

We cannot draw the whole Earth on one flat sheet without tearing or severe distortion. So we use many local maps.

Chart: A map from part of the manifold to an open set in (\mathbb{R}^n). On a chart we use standard calculus.
Atlas: A collection of charts covering the manifold.
Transition maps: On overlaps (e.g. Turkey on both a Europe and an Asia chart), we need a rule to change coordinates. If these maps are smooth, we have a smooth manifold.

For physicists this means we can do calculus without a global coordinate system. In general relativity, spacetime is a four-dimensional manifold; we write physics in each observer’s local frame (chart) and require covariance under coordinate change.

1.3 Manifolds in Physics: Phase Space and Configuration Space

In complex and non-equilibrium systems, manifolds appear everywhere, sometimes hidden in the equations.

Configuration space: For a double pendulum, the angle (\theta_1) of the first arm gives a circle (S^1), and (\theta_2) gives another. The full configuration space is (S^1 \times S^1), a torus. However chaotic the motion, the trajectory stays on this torus. Constraints (e.g. a particle confined to a sphere) naturally yield manifold configuration spaces.

Phase space and the cotangent bundle: If the position (q) lies on a manifold (M), the conjugate momentum (p) is a cotangent vector in (T_q^M). The set of all ((q,p)) is the cotangent bundle (T^M). It carries a symplectic form (\omega), making it a symplectic manifold (dimension (2n)). This structure underlies Liouville’s theorem: phase-space volume is conserved under Hamiltonian flow. In other words, symplectic structure is the “incompressibility” of phase space—like an ideal fluid, the “drop” of states deforms but does not change volume.

Why is non-equilibrium statistical mechanics so hard? Because in non-equilibrium (especially dissipative) systems, the symplectic structure is broken. Trajectories no longer preserve volume; they contract onto lower-dimensional submanifolds—attractors. Strange attractors can be fractal and no longer smooth manifolds, forcing tools beyond classical Riemannian geometry.

1.4 Strange Properties of High-Dimensional Manifolds

In complex systems we often deal with high-dimensional state or data spaces. High-dimensional manifolds can behave in ways that low-dimensional ones do not.

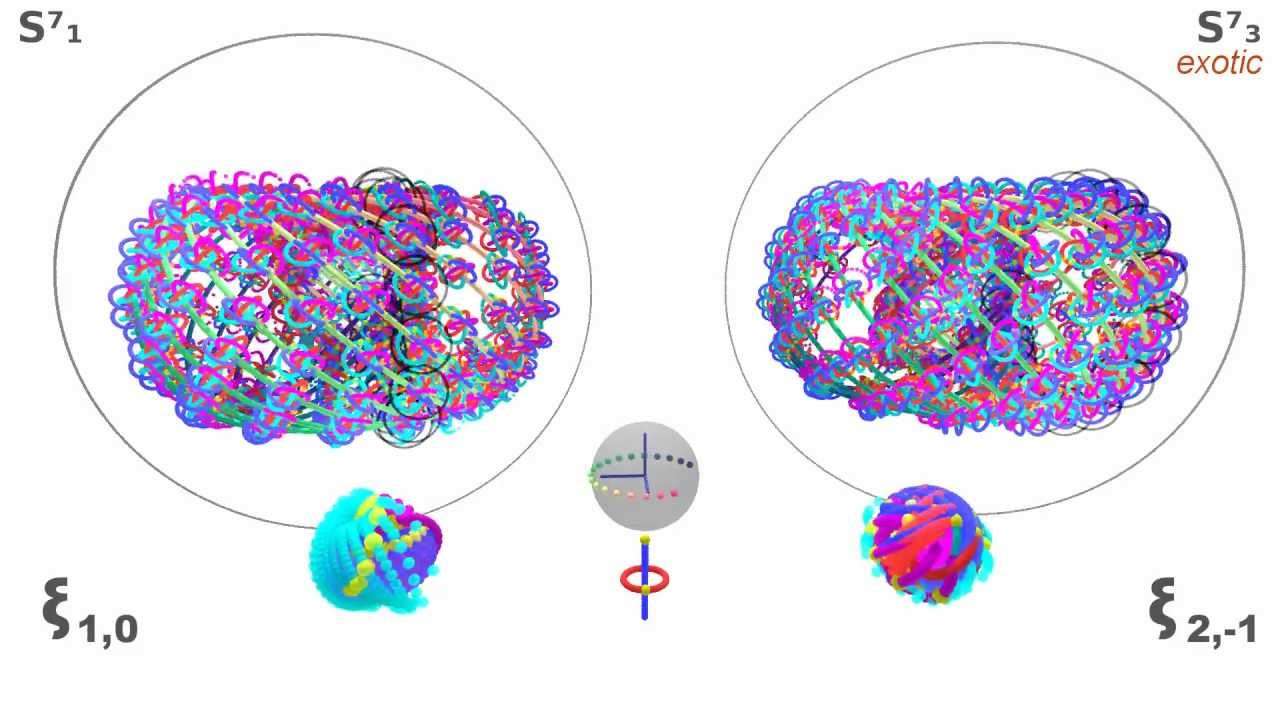

Exotic spheres: In 1956 John Milnor showed that the 7-sphere can carry several inequivalent smooth structures. Two manifolds can be topologically the same (both deformable to a sphere) but different as smooth manifolds—exotic spheres.

This is not only a mathematical curiosity: in string theory and high-dimensional field theory, the smooth structure of the manifold affects the physics. In data science, manifold learning tries to recover a low-dimensional manifold from high-dimensional noisy data.

2. The Grammar of Symmetry: Groups

Section 1 dealt with the state space—manifolds. But knowing the “stage” is not enough; we need the “rules of the game.” In physics the central rules are symmetries: which transformations leave the system unchanged? Group theory is the language of symmetry. If manifolds tell us “where,” groups tell us “which transformations are allowed.”

Groups are the grammar of motion on the stage. In physics, group theory is almost synonymous with the study of symmetry.

The concept of a group was introduced by Évariste Galois in the early 19th century to study permutations of roots of polynomials. He showed that solvability of an equation depends on the structure of its Galois group.

A group (G) is a set with a binary operation (e.g. “multiplication”) satisfying: closure (two operations compose to one in the group), associativity ((ab)c = a(b)c), identity (an element (e) with (ae = ea = a)), and inverses (every (a) has (a^{-1}) with (aa^{-1} = e)).

Example—discrete group: A perfect hexagonal snowflake can be rotated by 60°, 120°, 180°, … These rotations form a group. A 15° rotation does not leave the snowflake invariant, so it is not in the symmetry group. Such discrete groups appear in crystallography as space groups.

By Noether’s theorem, every continuous symmetry group corresponds to a conserved quantity. Conservation of energy, momentum, and charge are consequences of the symmetry groups of physical law.

3. The Continuous Bridge: Lie Groups

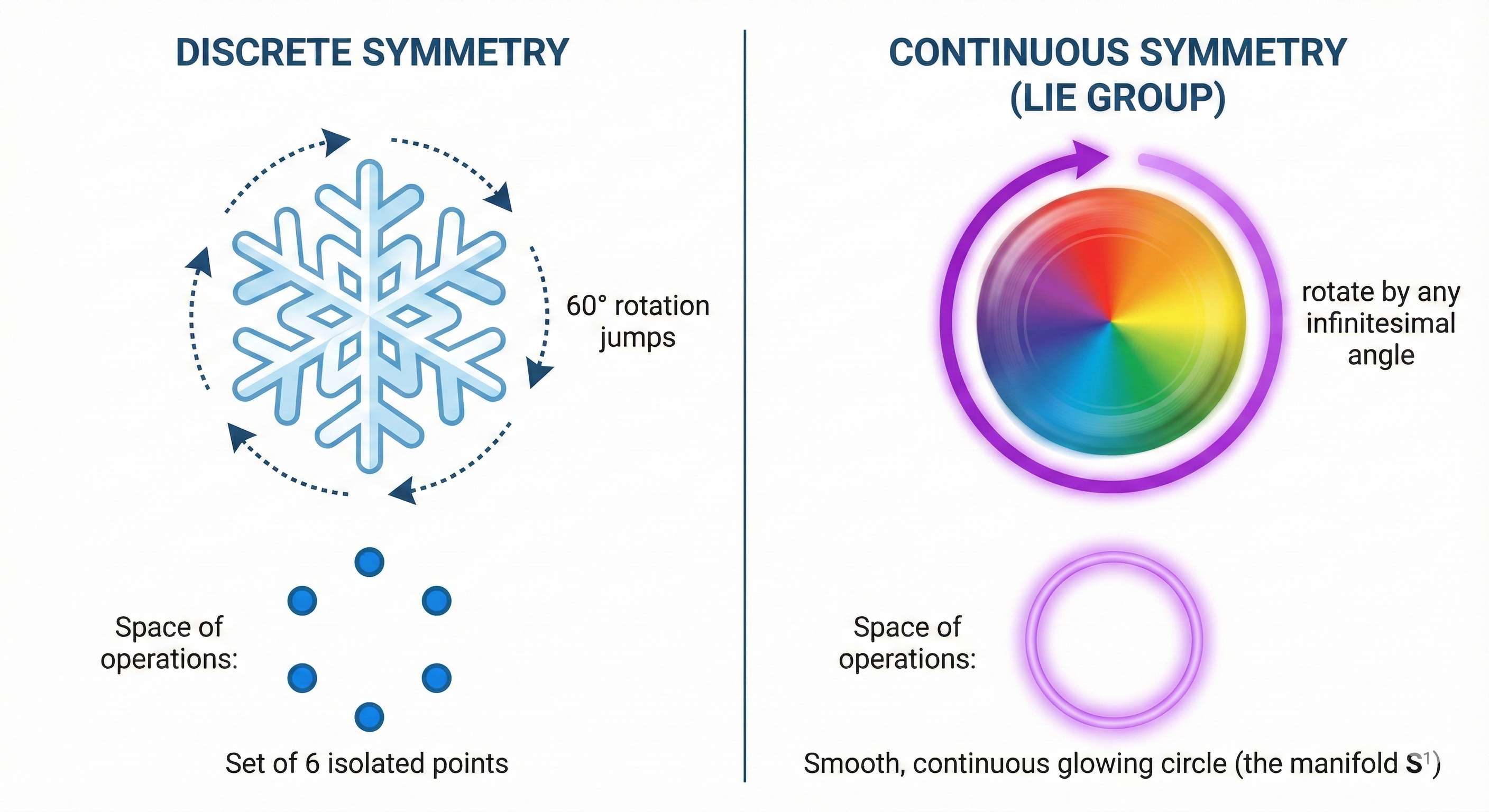

The groups above are mostly discrete—snowflakes rotate by multiples of 60°, crystals translate by lattice constants. But many fundamental symmetries are continuous: space-time can be rotated or translated arbitrarily, temperature can vary smoothly. Lie groups are the answer: mathematical objects that are both a group and a manifold.

We combine the smoothness of a manifold with the algebraic structure of a group and obtain a Lie group. For complex and non-equilibrium systems, Lie groups are the natural setting for continuous evolution and dynamical symmetry.

Sophus Lie developed the theory in the late 19th century to attack differential equations with continuous groups, in analogy to Galois’ use of discrete groups for algebraic equations.

Definition: A Lie group (G) is a group that is also a smooth manifold, such that multiplication ((g_1,g_2) \mapsto g_1 g_2) and inversion (g \mapsto g^{-1}) are smooth maps.

So elements of a Lie group can not only be multiplied but continuously varied—you can turn a knob slightly and get a nearby state. This is where calculus enters group theory.

(SO(2)) and the circle: Rotations of a disk in the plane by an angle (\theta) form the special orthogonal group (SO(2)). The angle (\theta \in [0,2\pi)) (with 0 and (2\pi) identified) makes (SO(2)) geometrically a circle (S^1). Each point on the circle is a rotation; “adding” angles is the group operation.
(SO(3)) and the 3-sphere: Rotations of a sphere in 3D are described by three parameters (e.g. Euler angles). The group (SO(3)) is a three-dimensional manifold—in fact (\mathbb{R}P^3). This is why you need two full turns to untangle a belt (Dirac’s belt trick)—(SO(3)) is not simply connected.

3.1 Why Complex Systems Need Lie Groups

In complex and non-equilibrium physics, time evolution itself often forms a Lie group action.

Time evolution: In Hamiltonian or quantum mechanics, (U(t) = e^{-iHt}) is a one-parameter Lie group (a subgroup of the reals).
Symmetry breaking: Phase transitions often correspond to reduction of Lie symmetry. Liquid water has Euclidean (E(3)) symmetry; ice has a discrete crystal group. The collapse from a continuous Lie group to a discrete subgroup is the geometric essence of Landau-style phase transitions.

Lie groups are powerful because they allow linearization of the nonlinear group structure. The result is a Lie algebra.

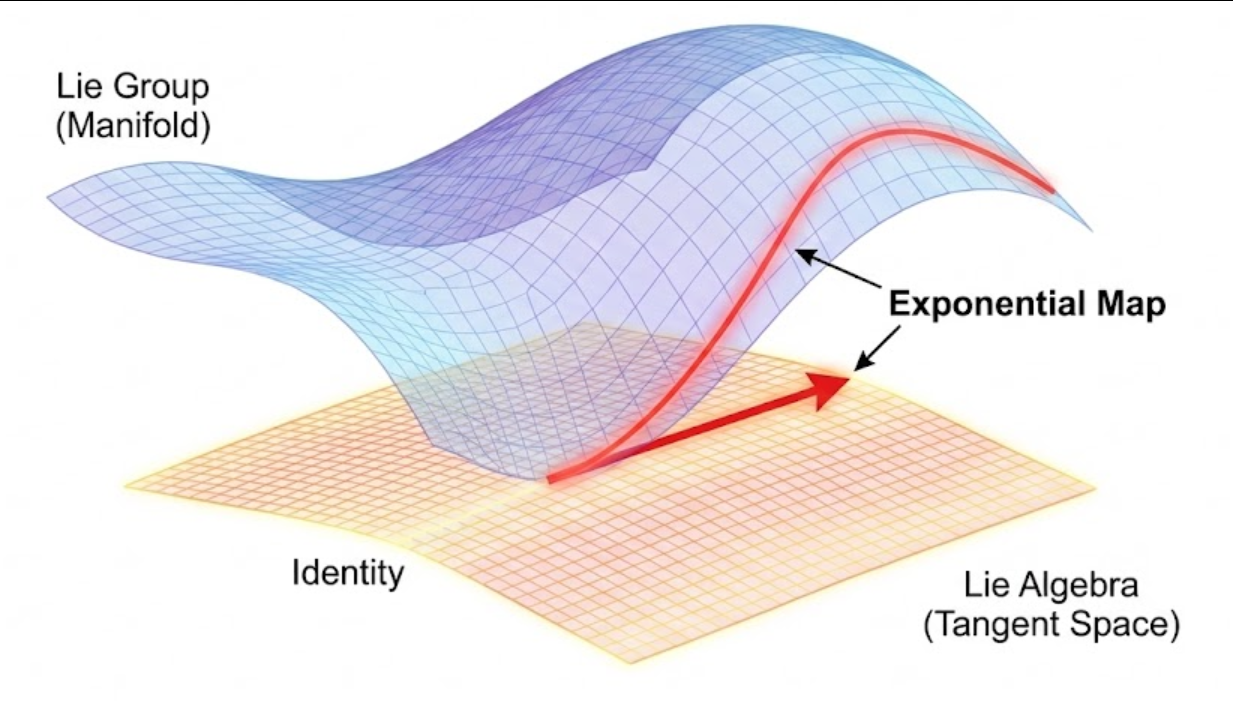

3.2 The Exponential Map: From Local to Global

An element (X) of the Lie algebra (\mathfrak{g}) is mapped back into the Lie group by the exponential map:

$$g = \exp(X)$$

For matrix Lie groups this is the matrix exponential (e^X = I + X + \frac{1}{2}X^2 + \cdots).

Intuition: Think of the Lie algebra as “velocity” and the Lie group as “position.” Given velocity (element of (\mathfrak{g})), integration (exponential map) gives position (element of (G)). So knowing the local tangent space (Lie algebra) we can recover local group structure—just as in physics, knowing the Hamiltonian (in the Lie algebra) gives the time-evolution operator (in the Lie group).

4. Lie Algebras: From Curved to Flat

Lie groups are curved; computing on them directly is hard. The trick is to look at the infinitesimal structure near the identity (e). That structure is linear—like the tangent plane to a sphere. This “tangent plane” is the Lie algebra (\mathfrak{g}): the tangent space to the Lie group at the identity.

Intuition: For (SO(2)) (a circle), draw the horizontal tangent line at the top (0° rotation). That line is (\mathfrak{so}(2)).
Physics: Points on the Lie group are finite transformations (e.g. rotate 30°); vectors in the Lie algebra are infinitesimal transformations. Their “direction” corresponds to generators—e.g. angular momentum for rotations, momentum for translations.

4.1 The Lie Bracket: Non-commutativity and Curvature

In the Lie algebra (a vector space), the key operation is the Lie bracket ([X,Y]). For matrices, ([X,Y] = XY - YX).

Non-Abelian imprint: ([X,Y]) measures whether two infinitesimal transformations commute. If ([X,Y] \neq 0), doing X then Y differs from Y then X.
Curvature: Geometrically, the Lie bracket reflects the curvature of the Lie group. On the Earth, going 1 km north then 1 km east is not the same as east then north. This path-dependence, in the infinitesimal limit, is encoded by the Lie bracket.

5. Application I: Souriau’s Lie Group Thermodynamics

We now have the full geometric toolkit: manifolds for state-space shape, groups for symmetry, Lie groups unifying both, Lie algebras for linearization. Jean-Marie Souriau’s Lie group thermodynamics reframes the nature of “temperature.”

5.1 Temperature as Geometry

In classical thermodynamics, temperature (T) is a scalar and (\beta = 1/(kT)) is a Lagrange multiplier for energy. In relativistic or rapidly rotating systems this is insufficient.

Souriau proposed that “temperature” is an element of the Lie algebra of the spacetime symmetry group.

Geometric temperature: If the system is acted on by a Lie group (G) (e.g. Galilean or Poincaré), the generalized temperature (\beta) is a vector in the Lie algebra (\mathfrak{g}).
If the system is at rest, (\beta) has only a time component and reduces to the usual scalar temperature.
If the system is rotating (e.g. gas in a centrifuge), (\beta) has a component along the rotation generator. “Rotation” and “heat” are unified in one geometric object.

5.2 Entropy and Coadjoint Orbits

If (\beta \in \mathfrak{g}), then heat (Q) and other conserved moments live in the dual (\mathfrak{g}^). Souriau showed that entropy (S) is a Casimir invariant* of the coadjoint representation.

Coadjoint orbits: The Lie group acts on (\mathfrak{g}^) by the coadjoint action. The orbits are coadjoint orbits*.
These orbits are level sets of entropy. In reversible processes the system stays on one orbit; in dissipative processes it transverses orbits. Non-equilibrium thermodynamics is thus the “transverse drift” that breaks symplectic conservation. Souriau’s framework, with a metric compatible with the symplectic form (e.g. Fisher–Souriau), geometrizes dissipative dynamics.

Concept	Classical	Souriau Lie group thermodynamics
State space	Symplectic (phase space)	Symplectic under Lie group action
Temperature	Scalar (\beta = 1/kT)	Vector (\beta \in \mathfrak{g})
Heat / conserved	Energy (E)	(Q \in \mathfrak{g}^*) (energy, momentum, moments)
Entropy	log of state count	Casimir of coadjoint representation
Equilibrium	Gibbs distribution	Covariant Gibbs state
Dissipation	Entropy increase	Flow transverse to coadjoint orbits

6. Application II: Viscoplasticity and Quotient Groups

In soft matter and continuum mechanics, distinguishing viscoelastic fluids from viscoplastic solids is subtle. H.C. Öttinger and coworkers used Lie groups to give an elegant picture.

Viscoelastic fluid: No memory of initial shape; symmetry is the simply connected covering group.
Viscoplastic solid: Memory is periodic (e.g. crystal: translate by a lattice vector and the configuration looks the same). Physically indistinguishable reference states form a discrete normal subgroup (Z).

The dynamics does not take place on the full group (G) but on the quotient (G/Z). Small deformations are motion within a local patch of (G/Z); plastic slip occurs when the state jumps to another coset of (Z)—macroscopically, irreversible plastic flow. This explains why plasticity involves symmetry breaking and discrete slip bands, while fluid flow is smooth.

7. Application III: Synchronization and the Kuramoto Model on Higher-Dimensional Spheres

Synchronization (fireflies, neurons) is often modeled by Kuramoto dynamics. The classical model lives on the circle (S^1). For drone swarms, spin networks, etc., we need synchronization on higher-dimensional manifolds.

Generalizing Kuramoto to Lie groups (e.g. (SO(3))) leads to:

Non-Abelian synchronization: On (S^1), phase addition commutes. On (SO(3)), the order of rotations matters. Drone formation must synchronize both position and attitude—gradient flow on a non-commutative Lie group.
Hyperbolic geometry: Synchronization on higher-dimensional spheres connects to hyperbolic space; stability can be analyzed via Möbius transformations under the Lie group action.
Matrix order parameter: On a Lie group, the “order parameter” for synchrony is a matrix; the system evolves toward synchrony by optimizing this matrix on the Lie-algebra manifold.

Summary: Geometry as a Shortcut to Complexity

For researchers used to probability distributions, master equations, and Langevin dynamics, manifolds and Lie groups can look like extra baggage. But as Poincaré said: “Mathematics is the art of giving the same name to different things.”

From manifolds to Lie groups, one geometric language unifies diverse non-equilibrium phenomena:

Manifolds: State spaces with non-trivial topology (tori, exotic spheres) govern global behavior (e.g. attractors).
Lie groups: Expose the symmetry behind dynamics—Noether’s theorem and quotient structure explain the difference between elasticity and plasticity.
Lie algebras and Souriau thermodynamics: Linearize the structure and lift temperature, heat, and entropy to geometric objects, clarifying the geometric path of dissipative processes.

At the edge of chaos, geometry does not disappear—it deepens. With the language of groups, Lie groups, and manifolds, we stop groping for special solutions and instead follow symmetry to the geometric order of complex systems.
